Top 7 Boss Ge7 Eq Pedel

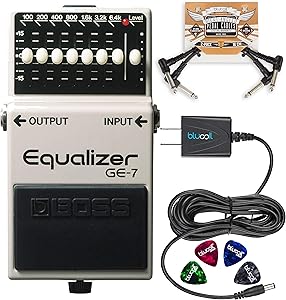

BOSS GE-7 7-Band EQ Pedal
Easily adjust your microphone or instrument’s harmonic content with BOSS GE-7 Equalizer! This 7-band EQ pedal covers a wide frequency spectrum (100Hz to 6.4kHz) for electric bass/guitar, keyboard, mic, and more. It yields 15dB of cut/boost. Plus, the Level Slider allows you to control GE-7’s output loudness; very useful for getting that perfectly-balanced effect sound.

TECHNICAL SPECS:

The GE-7 equalizer pedal offers seven bands of EQ ranging from 100Hz to 6.4kHz, ideal for guitar sounds, with boost/cut of +/- 15dB per band. This lets you completely control your sound and eliminate unwanted feedback, particularly when connected after a distortion effect.

The MXR Ten Band EQ has been upgraded with noise-reduction circuitry, true bypass switching, a lightweight aluminum housing, brighter LEDs for increased visibility, and a second output so you can run two separate signal chains. With ten carefully chosen frequencies and both input and output level controls, the Ten Band EQ will let you tune your bass or guitar rig to any room in seconds-create earthshaking low-end; restore punch, level, and treble response to a crowded pedalboard; warm up an amplified acoustic; and much, much more. For ultimate tone-sculpting ability in a bullet-proof enclosure, put the Ten Band EQ on your pedalboard.

The GEB-7 is a seven-band equalizer created specifically for the frequency range of the electric bass. Since the frequency range extends down to 50Hz, The GEB-7 is also great for adjusting depth and bottom end of an upright bass with pickups.

Biyang EQ7 Graphic EQ Pedal For Guitar

HeadRush Pedalboard

Featuring a finely-tuned quad-core processor and powered by exclusive Eleven; HD Expanded™ DSP software, the HeadRush Pedalboard™ delivers the most versatile, realistic-sounding and responsive amplifier, cabinet, microphone and FX models ever found in a road-ready floorboard guitar FX processor. The 7-inch touch display enables you to touch, swipe and drag-and-drop to instantly create and edit your rigs in an unprecedentedly realistic and intuitive way.

Plus, it features gapless preset changes with reverb and delay tail spillover, a built-in looper with 20 minutes of record time, the ability to load custom impulse response files and exclusive original boutique effects that can’t be found anywhere else. Whether you’re looking for a classic warm vintage amp with natural tube drive, wide ambient stereo delay textures with infinite feedback or the heaviest of heavy djent tone, the HeadRush Pedalboard covers it all and everything between.

7-Inch Touch Display

The heart of the HeadRush Pedalboard is the 7-inch touch display and a guitarist-centric, ultra-intuitive user interface – literally touch, swipe and drag-and-drop to instantly create and edit rigs with amazing speed and accuracy. The large display also gives clear feedback when performing live, especially when tweaking tones using the expression pedal in ‘Hands-Free Mode’. Everything about the HeadRush Pedalboard is designed to make it simple, fast and intuitive to jump right in and create amazing sounding rigs in seconds.

Tour Ready

Housed in a durable road-ready steel chassis with a cable route built into the bottom to help keep your stage tidy, the HeadRush Pedalboard includes many thoughtful features for use on stage including incredibly bright color-assignable LEDs and OLED scribble strips that show each of the 12 footswitches’ current assignment and status for each rig. You can even drag-and-drop to create set lists (custom orders of rigs) for your gigs. The HeadRush Pedalboard is a truly convenient and compact way to bring all of the best classic vintage and modern gear you will ever need to stages near or far without breaking the bank or your back.

All the Connections You Need

The HeadRush Pedalboard assimilates seamlessly into your current rig with all the connections you need to handle any performance situation. Combining a ¼-inch guitar input, (2) XLR outputs with ground lift switch, (2) ¼-inch TRS outputs switchable between amp or line level, 5-Pin MIDI in/out, plus an onboard ¼-inch stereo FX loop to integrate pedals and outboard gear at any point in the signal chain. HeadRush Pedalboard unites your existing equipment while opening up a world of new sonic possibilities.

Custom/3rd Party IR Support

With the HeadRush Pedalboard, guitarists can further expand their available guitar cabinet sounds by loading 3rd party impulse response files to the HeadRush Pedalboard. HeadRush teamed up with Celestion to include an exclusive download right in the box get you started, but the HeadRush Pedalboard also supports all other 48kHz, 16-bit mono .WAV type IRs up to 2048 samples.

Technical Specifications

Footswitches

• (12) footswitches with color LEDs & OLED displays

Pedals

• expression pedal

Knobs

• 300° master volume knob (1) 300° phones volume knob
• 300° auxiliary volume knob (1) 360° navigation/data encoder (3) 360° parameter encoders

Displays

• Main Display:(1) full-color LED-backlit display with touch interface 6.9” / 176 mm (diagonal)
  9” x 3.7” / 150 x 93 mm (width x height)
• OLED Displays: (12) monochromatic OLED-backlit displays 1.2” / 30 mm(diagonal)
  1” x 0.4” / 28 x 11 mm (width x height)

Connectors

• 1/4” (6.35 mm) TS input(guitar)
• (1) 1/4” (6.35 mm) TRS input(secondary expression pedal) (1) 1/8” (3.5 mm) stereo input (auxiliary device)
• (2) XLR outputs(with ground-lift switch)
• (2) 1/4” (6.35 mm) TRS outputs(amp- or line-level)
• (2) 1/4” (6.35 mm) TRS inputs(sends)
• (2) 1/4” (6.35 mm) TRS outputs(returns)
• (1) 5-pin MIDI input
• (1) 5-pin MIDI output/thru
• (1) USB Type-B port
• (1) IEC power input

Power

• Connection:IEC
• Input Voltage:100–240 V, 50/60 Hz, 1.2 A

Dimensions : (width x depth x height, pedal fully forward)

• 6” x 11.2” x 2.9”
• 59.9 x 28.4 x 7.4 cm
