Top 9 Ekwb 280Mm Cooling Kit

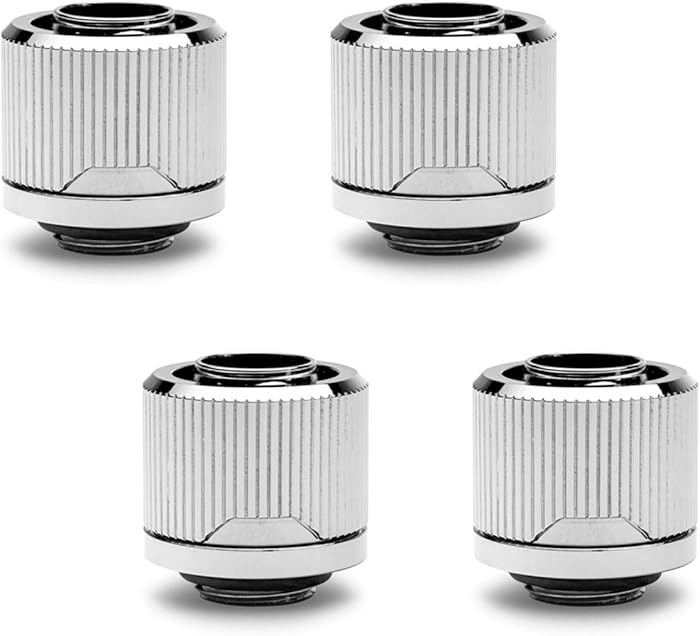

EK-Torque STC 12/16 Nickel fittings are EK’s new minimalistic 12/16mm (ID/OD) soft-tube compression fittings designed for use with various flexible soft tubing types such as PVC, EPDM, Norprene, silicone or any other type of compatible flexible tube. With a non-intrusive, yet striking look, and with NO added branding at all. They can be complemented by interchangeable aesthetic color rings, and are an ideal choice for anyone and a perfect match with EK-Quantum series products.

The locking ring prevents solid tube to be pulled out of the fitting by compressing the rubber gasket underneath the ring. The grooves on the outside allow for easier hand tightening. The compression ring has cutouts in EK Quantum signature shape allowing for the colored aesthetic ring to be shown. The colored rings are available in many colors and are screwed onto the fitting before the compression locking ring. The aesthetic rings are sold separately.

The fitting barb and the compression rings are covered with a unique, high-quality nickel finish. Both are made of CNC machined brass and the seal is made quality rubber O-rings.

The base fitting surface is smooth and has no adequate gripping surface, but the inside of the barb is socketed with a 9mm hex Allen key pattern. It’s highly recommended to use an Allen Key 9mm (purchased separately) to prevent skin damage to the fingertips while installing the fitting.

Technical data:
– Finish: Satin Black
– Thread: G1/4″ BSPP; 4.5mm male thread length
– Supported tube: 12/16mm (ID/OD)
– The outer diameter of a fitting: 23mm
– Installed height: 19mm

PLEASE NOTE:

• Do not use excessive force when attaching fitting barbs using Allen Key 9mm in order to prevent damage!
• This product should NOT be installed with any aluminum Fluid Gaming parts!
• The aesthetic rings are sold separately.

Model: TR-3831109813843-4P

EK-DuraClear is the most advanced liquid cooling tubing, designed and manufactured for the most demanding customers, who want to use soft tubing in their builds. The EK-DuraClear structure is formulated to enable it to perform in a wide range of closed loop cooling systems, making it the top choice for every liquid cooling enthusiast.

Our top priority during the development of this tube was the prevention of bacterial growth on the tubing wall. To eliminate this problem, EK-DuraClear has very smooth inner walls that prevent any kind of bacterial adhesion. Tested in the most extreme environments, the EK-DuraClear is guaranteed to withstand far worse conditions that would ever appear in the everyday use.

One of the most important features that the soft tube should have is the flexibility and good bend ratio without kinks. EK-DuraClear has one of the best bend ratios on the market. Doing a tight turn in your liquid cooling build has never been easier! Tighter bends without kinking will allow you to have no reduction in cooling performance whatsoever.

Unlike the matte black EK ZMT Tube, EK-DuraClear is a transparent tube, designed to be used with EK-Ekoolant cooling liquids. Colored liquid realy gives your build a touch of personality and there is nothing more beautiful than matching colors of liquid with your hardware.

Features:
– Highly durable
– Transparent
– UV Resistant
– Logo Free (no print on tube)
– Inner Wall resilience
– Environmentally responsible, safe and non-toxic product

Technical Specifications:
– Material: PVC
– Color: Clear, not UV-reactive (resistant to UVA & UVB)
– Length: 3 meters
– Operating temperature range: -20°C to 80°C

Dimensions:
– Internal diameter (ID): 11,1 mm (7/16″)
– Outer diameter (OD): 15,9 mm (5/8″)

Model: 3831109850985

EK-CoolStream SE is a slim, high-performance computer liquid cooling radiator which combines EK’s unique CSQ design with latest radiator core engine. Built for EK-Vardar 120mm high static pressure fans, these radiators are optimized for maximum heat dissipation across entire fan operational range thus delivering exceptional performance at both low- and high airflow operation. EK assured quality level, optimal price-performance ratio and unique minimalistic design make these EK-CoolStream SE series radiators a perfect choice for any computer water cooled system. Overall compact measurement of the SE series radiator allow for utilization even in the tiniest computer chassis. This radiator offers best cooling capacity in 28mm thick radiator class: copper fins provide massive surface area while the parallel flow cooling chambers reduce hydraulic flow resistance to a minimum. Radiator shrouds are tapped with UNC 6-32 threads on both sides to enable push-pull fan installation to even further increase the cooling performance. This product features two recessed G1/4 threaded ports with two pre-installed extenders to allow any G1/4 threaded fitting to be used. EK recommends EK-ACF series compression fittings.

Model: 3831109860472

EK-DuraClear is the most advanced liquid cooling tubing, designed and manufactured for the most demanding customers, who want to use soft tubing in their builds. The EK-DuraClear structure is formulated to enable it to perform in a wide range of closed loop cooling systems, making it the top choice for every liquid cooling enthusiast.

Our top priority during the development of this tube was the prevention of bacterial growth on the tubing wall. To eliminate this problem, EK-DuraClear has very smooth inner walls that prevent any kind of bacterial adhesion. Tested in the most extreme environments, the EK-DuraClear is guaranteed to withstand far worse conditions that would ever appear in the everyday use.

One of the most important features that the soft tube should have is the flexibility and good bend ratio without kinks. EK-DuraClear has one of the best bend ratios on the market. Doing a tight turn in your liquid cooling build has never been easier! Tighter bends without kinking will allow you to have no reduction in cooling performance whatsoever.

Unlike the matte black EK ZMT Tube, EK-DuraClear is a transparent tube, designed to be used with EK-Ekoolant cooling liquids. Colored liquid really gives your build a touch of personality and there is nothing more beautiful than matching colors of liquid with your hardware.

Features:
– Highly durable
– Transparent
– UV Resistant
– Logo Free (no print on tube)
– Inner Wall resilience
– Environmentally responsible, safe and non-toxic product

Technical Specifications:
– Material: PVC
– Color: Clear, not UV-reactive (resistant to UVA & UVB)
– Length: 3 meters
– Operating temperature range: -20°C to 80°C

Dimensions:
Internal diameter (ID): 9,5 mm (3/8″)
Outer diameter (OD): 15,9 mm (5/8″)

Model: 3831109850978

EK-CoolStream PE is a high-performance computer water-cooling radiator which combines EK’s unique CSQ design with latest radiator core engine. Built for EK-Vardar 120mm high static pressure fans, these radiators are optimized for maximum heat dissipation across entire fan operational range thus delivering exceptional performance at both low- and high airflow operation. EK assured quality level, optimal price-performance ratio and unique minimalistic design make these EK-CoolStream PE series radiators a perfect choice for any computer water cooled system. This radiator offers best cooling capacity in the 40mm thick radiator class: Double stack copper fins provide massive surface area while the parallel flow cooling chambers reduce hydraulic flow resistance to a minimum. Radiator shrouds are tapped with UNC 6-32 threads on both sides to enable push-pull fan installation to even further increase the cooling performance. This product features two recessed G1/4 threaded ports with pre-installed extenders to allow any G1/4 threaded fitting to be used. EK recommends EK-ACF series compression fittings.

Model: 3831109860267

EK-CoolStream Classic SE 360 slim copper radiators are designed for optimal airflow throughout the radiator surface with medium density fin structure. Built for EK-Vardar 120mm high static pressure fans, these radiators are optimized for maximum heat dissipation across entire fan operational range thus delivering exceptional performance at both low and high airflow operation.

EK quality level, best price-performance ratio to date and unique minimalistic design make these EK-CoolStream Classic SE series radiators a perfect choice for any computer water cooled system. 27mm thick design allows for utilization even in the space-constrained cases while allowing great cooling potential due to the high-performance core engine.

This product features two G1/4 threaded ports. EK recommends the use of EK compression fittings.

Technical details:
Material:
– Copper fins
– 90% copper tubing (H90)
– Brass chambers
– Steel housing

Dimensions: 393 x 120 x 27mm (L x W x H)
Weight: 0.37kg
Liquid Capacity: ~155mL
FPI: 16
Port threads: 2x G1/4
Fan compatibility: any standard size 120x120x25mm fan; UNC 6-32 thread tapping
Pressure tested: 1bar(g)

Enclosed:
– EK-CoolStream Classic SE series radiator
– Phillips Slotted UNC 6-32 screws (l=30mm)
– Phillips Slotted UNC 6-32 screws (l=5mm)

PLEASE NOTE:

• When using fans other than standard 120x120x25mm size please use appropriately long screws!Use of the improperly long screws may result in piercing of the radiator core and irreparably damage the product. Such misuse is not covered by product warranty!
• This product should NOT be installed with any aluminum Fluid Gaming parts!

Model: 3831109817339

EK-XTOP Revo D5 PWM is a high-performance liquid cooling pump, built around the market-proven Xylem D5 PWM water pump and revolutionary EK-XTOP Revo D5 pump volute/body with the revolutionary vibration-reducing mounting clamp. This unit offers increased hydraulic performance (up to 15 %) compared to original factory top. This pump is ideal for PC and other electronics water cooling. The D5 pump is equipped with an electronically commutated spherical motor. In a pump with a spherical motor, the only moving part is a spherically shaped rotor which in this pump is held in place by a bearing ball made of ultra-hard and wear-resistant ceramic. Rated 50.000 hrs MTBF at 25°C ambient! The new D5 Revo pump volute/body system features a fully rounded design thus offering greater usability, allowing installation at any angle within 360° of rotation. Special rubber shock absorber is used to de-couple the main pump body from the mounting clip for silent operation, free of vibration induced noise. Additionally, horizontal and vertical positioning are supported for easier tube routing possibilities. This pump features a single inlet- (suction) and outlet port (pressure) for installation of two standard G1/4 threaded fittings/barbs. EK recommends EK-ACF series compression fittings. The top is made of quality POM Acetal material, while the tightening nut is made from CNC machined aluminum. Mounting clamp is made from injection molded ABS. Mounting mechanism and easy-to-follow installation guide are enclosed.

Model: 3831109843338

All new Flat (FLT) series EK-Quantum Kinetic FLT D5 pump-reservoir units! The new Kinetic combo units are part of the EK Quantum Line of products and come with sophisticated addressable D-RGB lighting implementation and a genuine D5 pump! Each unit is featuring standard 120mm fan mounting holes for maximum flexibility during the installation. The reservoir is equipped with a total of six G1/4“.

EK-Quantum Kinetic FLT D5 series pump-reservoir units are equipped with genuine D5 pumps, made in Europe, which are capable of delivering flow rates of 1500 liters per hour with a maximum head pressure up to 3.9 meters!

Alongside the reservoir is a black anodized aluminum cover under which the Addressable D-RGB LED strip is placed. Proper LED implementation is one of the main focus points of EK so that there are as few visible “LED hotspots” as possible.

Technical specifications:

– Size (HxWxT): 245x120x86mm (with the mounting system)
– Capacity: ~265ml
– D-RGB connector 3-pin 5V digital LED header (Pinout: +5V, D, Blocked, Ground)

Pump electrical and mechanical properties:
– Motor: Electronically commuted spherical motor
– Rated voltage: 12V DC
– Power consumption: 23W
– Maximum pressure head: 3.9m
– Maximum flow: 1500L/h
– Maximum system temperature: 60°C
– Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal
– Power connector: 4-Pin Molex- and 4-Pin PWM FAN connector

Operational regime:

– PWM duty cycle: ~ 20-100%
– Default behavior: Runs at 100% duty cycle when no PWM feedback signal is present

Enclosed:

– EK-Quantum Kinetic FLT 120 PWM D5 D-RGB
– Mounting mechanism with all necessary screws for 120mm fan mounting
– Pair of EK reservoir holders with mounting screws
– 4 × G1/4 Plugs
– 1 × Allen key for reservoir holders

Model: 3831109819791

Xylem D5 high-performance water pump motor with power management control (via PWM – pulse width modulation) of rotation speed trough motherboard BIOS or dedicated fan controller is a brand new and updated D5 water pump that brings even more stability and longevity.

EK-D5 PWM G2 is an enhanced variant of the world renown Xylem D5 PWM pump which features an improved PWM control driver. As a result the PWM ramp-up control, duty-cycle operation and feedback are now identical to that of the DDC type pump.

This product is compatible with any EK-D5 pump top and pump reservoir combo unit.

PWM control allows for automatic pump speed regulation depending on your CPU temperature. Full performance on demand or whisper quiet operation in idle mode!

This pump is ideal for PC and other electronics water cooling. The D5 pump is equipped with an electronically commutated spherical motor. In a pump with a spherical motor the only moving part is a spherically shaped rotor which in this pump is held in place by a bearing ball made of ultra-hard and wear-resistant ceramic.

Model: 3831109815496
