875 reviews analysed

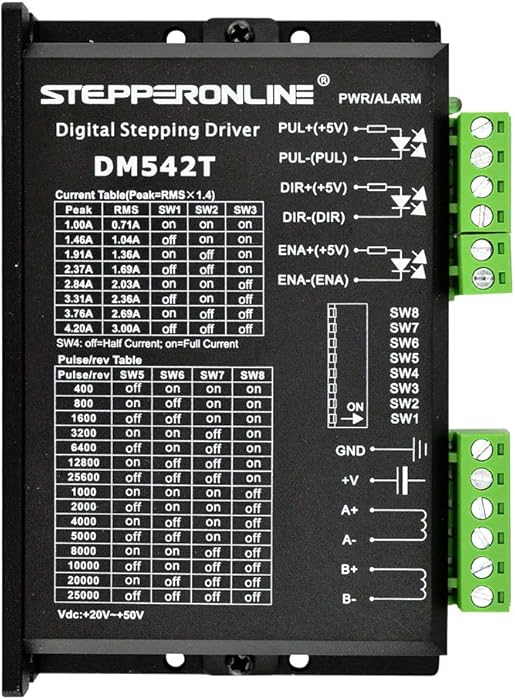

1. STEPPERONLINE CNC Stepper Motor Driver 1.0-4.2A 20-50VDC 1/128 Micro-step Resolutions for Nema 17 and 23 Stepper Motor
Description
Overview:
This driver is an industrial-grade fully digital stepper drive developed with advanced DSP control algorithm based on the latest motion control technology.
Its motor auto-identification and parameter auto-configuration feature offers quick setup to optimal modes with different motors.
Compared with other analog or TB6600 chips driver, it can drive a stepper motor at much lower noise, lower heating, and smoother movement.
Key Features:
* Anti-Resonance provides optimal torque and nulls mid-range instability
* Motor auto-identification and parameter auto-configuration when power on, offer optimal responses with different motors
* Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement
* 15 selectable microstep resolutions: 1/2, 1/4, 1/5, 1/8, 1/10, 1/16, 1/20, 1/25, 1/32, 1/40, 1/50, 1/64, 1/100, 1/125, 1/128
* Soft-start with no “jump” when powered on
* 8 selectable peak current including 1.00A to 4.20A
* Pulse input frequency up to 200 KHz, TTL compatible and optically isolated input
* Automatic idle-current reduction
* Suitable for 2-phase and 4-phase motors
* Support PUL/DIR mode
* Over-voltage and over-current protections
Electrical Specifications:
* Output Peak Current: 1.0~4.2A (3.0 RMS)
* Input Voltage: +20~50VDC (Typical 36VDC)
* Logic Signal Current: 7~16mA (Typical 10mA)
* Pulse Input Frequency: 0~200kHz
* Pulse Width: 2.5μS
* Isolation Resistance: 500MΩ
* Cooling: Natural Cooling or Forced cooling
* Environment: Avoid dust, oil fog and corrosive gases
* Operating Temperature: -10℃~45℃
* Vibration: 10-55Hz / 0.15mm
* Weight: Approx.210g (7.4oz)
Packing List:
1 x Stepper Driver DM542T
1 x Full DM542T Driver Manual
2. RTELLIGENT Nema 17 Stepper Motor, Bipolar Step Motor 1.2A 0.22Nm/31.2oz-in 42X40mm 1.8 Deg for 3D Printer Extruder CNC Router
Description
Our RTELLIGENT stepper motor is specially designed for accurate control of position and speed. The biggest characteristic of step motor is “digital” For each pulse signal from the controller, the stepper motor driven by its runs at a fixed angle (“One step” for short)
Electronic Specification of Step Motor:
◆ Product Model: 42A02
◆ Motor Type: Hybrid, open loop
◆ Step Angle: 1.8°±5% (full step, no-load)
◆ Rated Current: 1.2A
◆ Phase: 2
◆ Number of Lead: 4
◆ Holding Torque: 0.22Nm (31.2oz.in)
◆ Ambient temperature: -10℃ – 50℃
◆ Mounting Position: Axis horizontal or vertical installation
◆ Phase Resistance: 2.5Ohm ± 10%
◆ Phase Inductance: 5.5mH ± 20%
◆ Rotor Inertia: 57g.cm²
Physical Specification of Stepping Motor:
◆ Shaft Diameter: 5mm
◆ Motor Body Length: 40mm
◆ Motor Frame Size: 42*42mm
◆ Weight: 0.30kg
Default Connection:
Red (A), Green (B), Blue (C), Black (D)
Wide Application:
The hybrid stepper motor is widely use for 3D printers, medical equipment, laser CNC machine, automatic devices
Package Contents:
1 x 4202 digital stepper motor (open loop)
⚠ Warning: Make sure the motor is connected to a constant current or chopper drive controller before testing. Connecting the motor directly to a power supply will destroy it.
3. TOAUTO Integrated Closed-Loop Nema23 Stepper Motor with Driver IHSS57-36-20 2Nm 36V Position Encoder for Lazer 3D Printer CNC Control
Feature
- No loss of synchronization , the ToAuto Integrated Closed Loop Motors will overcome the synchronization issues with its in-corporation of the Position Tracking Technology, by integrating a Position Encoder behind the Step Motor. These will allow the Step Motor to behave like a Closed Loop Motor System, providing an automatic position correction, ensuring a higher degrees of positioning.
- Low Heat / High Efficiency Hybrid Stepper Motor Driver
- Smooth and Accurate : with the Encoder feedback vector current control algorithm and filtering technique, it overcome the Low-Frequency Resonance problem. This will results in a smoother motion at low speed, overcome the noise and vibration concern, experienced by the traditional Step Motor system.
- Hybrid step servo system have some advantages of the traditional open-loop stepper system, position response input and output command signal are almost real-time synchronization, so very suitable for condition of short distance quickly start / stop and zero-speed stop stably.
- In condition of point-to-point fast positioning, advanced servo control technology provides a large torque output. It makes the system has a very high dynamic response, it is far over the limit of step system
4. MybotOnline Nema 17 Stepper Motor Full D-cut Shaft 62oz-in 1.7A Bipolar 38mm 1.8deg 4-lead for 3D Printer CNC Reprap
Feature
- NEMA 17 stepper motor, 2 phase, up to 62.31oz-in(44Ncm) holding torque, high torque, low noise, low step loss and low cost
- Rated current: 1.7A. Step angle: 1.8°(200 steps/rev). Frame size: 1.65″(42 mm), square body. Full D-cut shaft length: 0.87″, shaft diameter: Φ0.2″
- 39.37″(1m) 4-pin cable and 2.54mm(0.1″) connector. Using M3 screws, easy to install. Connection: Red(A+), Black(A-), Blue(B+), Green(B-) Tips: Not only swap your old motor out but aslo the wire
- RoHS and CE Certified. Tightly packed in cut foam.
- Widely used for 3D printer, CNC milling, small robotics, stage lighting, laser engraving, textile machinery, medical equipment, placement machine, automation equipment. After-sales Service: , defective motor free replacement or refund. Any question feel free to message or QA us, we and our engineers will try our best to assist you
Description
Nema 17 42mm 2-phase 4-wire hybrid DC stepper motor, used in various types of equipment for accurate rotation angle and speed control, compact body with strong high torque and smooth motion, popular choice for DIY maker and 3d printer
Electrical Specification
- Manufacturer Part Number: 17HS15-1704S
- Motor Type: Bipolar Stepper
- Step Angle: 1.8 deg
- Maximum Holding Torque: 44 Ncm(62.31oz-in)
- Rated Current/phase: 1.7 A
- Phase Resistance: 2.7 ohms
- Inductance: 3.55 mH ± 20%(1KHz)
- Frame Size: 1.65″ x 1.65″ (42 x 42 mm)
- Body Length: 1.48″ (37.5 mm)
- Shaft Diameter: Φ0.2″(Φ5 mm)
- Full D-cut Shaft Length: 0.87″ (22 mm)
- Number of Leads: 4
- Lead Length: 39.37″ (1000 mm)
- Weight: 9.88oz(280 g)
- Red(A+), Black(A-), Blue(B+), Green(B-)
- 1-Piece Nema 17 stepper motor
Physical Specification
Connection
Package Included
5. A4988 Stepstick Stepper Motor Driver Module + Heat Sink for 3d Printer Reprap (Pack of 2 Pcs)
Description
A4988 surface mount QFN package (ES), the size of 5 mm *5 mm nominal overall package height of 0.90 mm??, and with exposed pad for enhanced thermal dissipation. The package is Pb (suffixes-T), with 100% matte tin leadframe plating. A4988 is a complete microstepping motor driver with built-in translator for easy operation. The product can be full, half, 1/4, 1/8 and 1/16 step mode to operate bipolar stepper motor output drive capacity of up to 35 V and ± 2 A. A4988 includes a fixed off-time current regulator, the regulator can slow or mixed decay mode. The converter is the key to the easy implementation of the A4988. In inputting one pulse on the STEP input drives the motor one microstep. No phase sequence tables, high frequency control lines, or complex interfaces to programming. A4988 interface is very suitable for complex microprocessor is unavailable or is overburdened. Micro-step operation, the chopping control in the A4988 automatically selects the current decay mode (Slow or Mixed).
6. WitBot Nema 17 Stepper Damper Stepper Motor Vibration Dampers + Heat Sink for CNC 42 Stepper Motor Shock Absorber (4pcs)
Feature
- 1.Stepper Dampers are used to decrease noise and resonance in your CNC and 3d Printer, eliminating vibration and effectively improving 3D printing quality.
- 2.High-quality anti-vibration shock absorber for effective impact reduction for quiet stepper motors.
- 3.3d Printers see a 5-10dB reduction in noise when used on X and Y Axis steppers with the vibration damper for nema 17.
- 4.Works on both Cartesian and Delta style Additive Manufacturing machines such as CR-10.
- 5.Material: Metal+Rubber.
7. Aokin A4988 StepStick Stepper Motor Driver Module + Heat Sink for 3D Printer RepRap
Feature
- This stepper motor driver lets you to operate bipolar stepper motors in full-, half-, quarter-, eighth-,and sixteenth-step modes, with an output drive capacity of up to 35 V and 2 A.
- There are no phase sequence tables, high frequency control lines, or complex interfaces to program.
- The A4988 interface is an ideal fit for applications where a complex microprocessor is unavailable or is overburdened.
- The translator is the key to the easy implementation of the A4988. Simply inputting one pulse on the STEP input drives the motor one microstep.
- This product is a breakout board for Allegro¡¯s A4988 DMOS Microstepping Driver with Translator and Overcurrent Protection
- please read the A4988 datasheet carefully before using this product.
Description
Features:
➤Simple step and direction control interface
➤Five different step resolutions: full-step, half-step, quarter-step, eighth-step, and sixteenth-step
➤Adjustable current control lets you set the maximum current output with a potentiometer,which lets you use voltages above your stepper motor¡¯s rated voltage to achieve higher step rates
➤Intelligent chopping control that automatically selects the correct current decay mode(fast decay or slow decay)
➤Over-temperature thermal shutdown, under-voltage lockout, and crossover-current protection
➤Short-to-ground and shorted-load protection
Warning:
➤Connecting or disconnecting a stepper motor while the driver is powered can destroy the driver.(More generally, rewiring anything while it is powered is asking for trouble.)
Package Include:
5x A4988 Stepper Motor Driver Module
Only the above package content, other products are not included.
8. Bolsen 5pcs/lot Reprap Stepper Driver pololu A4988 Stepper Motor Driver Module with Aluminum Heat Sink for ramps 1.4 3D Printer
Feature
- 5PCS,Simple step and direction control interface
- Five different step resolutions: full-step, half-step, quarter-step, eighth-step, and sixteenth-step
- Adjustable current control lets you set the maximum current output with a potentiometer,
- which lets you use voltages above your stepper motor’s rated voltage to achieve higher step rates
Description
Color: Red
Description
This product is a breakout board for Allegro’s A4988 DMOS Microstepping Driver with Translator and Overcurrent Protection;
This stepper motor driver lets you to operate bipolar stepper motors in full-, half-, quarter-, eighth-,and sixteenth-step modes, with an output drive capacity of up to 35 V and 2 A.
The translator is the key to the easy implementation of the A4988.
Simply inputting one pulse on the STEP input drives the motor one microstep.
There are no phase sequence tables, high frequency control lines, or complex interfaces to program.
The A4988 interface is an ideal fit for applications where a complex microprocessor is unavailable or is overburdened.
9. Organizer 5pcs DRV8825 Stepper Motor Driver Module with Heat Sink for 3D Printer Rrerap Ramps 1.4 A4988
Feature
- 1.The DRV8825 Stepper Motor Driver Module has a pinout, it can be used as a better performance of the pull-down menu board replacement in many applications
- 2.The DRV8825 features adjustable current limiting, overcurrent and overtemperature protection, and six microstep resolutions (down to 1/32-step).
- 3.It operates from 8.2 – 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling).
- 4.Intelligent chopping control automatically selects the correct current decay mode (fast decay or slow decay)
- 5.5PCS DRV8825 Compatible Stepper StepStick Motor Diver Module with Heat Sink for 3D Printer Controller Rrerap Ramps 1.5 1.6 CNC Machine or Robotics
Description
Description:
The DRV8825 stepper motor driver carrier is a breakout board for DRV8825 microstepping bipolar stepper motor driver.
The module has a pinout and interface that are nearly identical to those of our A4988 stepper motor driver board, so it can be used as a higher-performance drop-in replacement for those boards in many applications.
The DRV8825 features adjustable current limiting, overcurrent and overtemperature protection, and six microstep resolutions (down to 1/32-step). It operates from 8.2 ¨C 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling).
Features:
1.Simple step and direction control interface
2.Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
3.Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor rated voltage to achieve higher step rates
4.Maximum 45 V supply voltage
5. Built-in regulator (no external logic voltage supply needed)
6.Can interface directly with 3.3 V and 5 V systems
7.Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout
8.Short-to-ground and shorted-load protection
9.4-layer, 2 oz copper PCB for improved heat dissipation
10.Exposed solderable ground pad below the driver IC on the bottom of the PCB
11.Module size, pinout, and interface match those of our A4988 stepper motor driver carriers in most respects (see the bottom of this page for more information)
Package included:
5* DRV8825 Stepper Motor Driver Module
5*Heat Sink
10. KINGPRINT DRV8825 Stepper Motor Driver Module with Heat Sink for 3D Printer Rrerap Ramps 1.4 A4988 (Pack of 5pcs)
Conclusion
By our suggestions above, we hope that you can found Heating Stepper Motor for you.Please don’t forget to share your experience by comment in this post. Thank you!
